acradyne Gen iv iec field controller

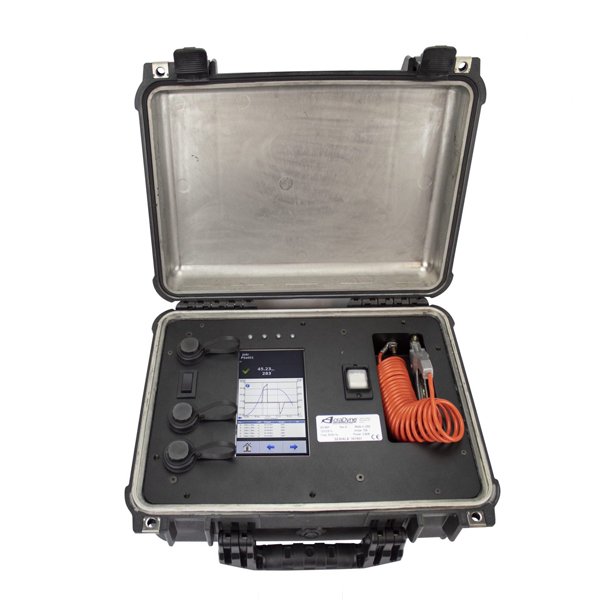

The AcraDyne Gen IV iEC Field Controller is the core of the modular AcraDyne DC System. One controller will command any tool in the AcraDyne line - including the HT DC Angle Tool - from 250 Nm to 17,000 Nm.
Made in the USA
-
Optimized for extreme duty applications >5,000 Nm
The Gen IV Controller utilizes three tightening strategies:
– Torque Control: Drive the tool to a pre-set Target Torque
– Angle Control: Drive the tool to or measure a pre-set
Degree of Angle
– Yield Control: Drive the tool to the Fastener Yield Point
to achieve maximum clamp loadMultiple fastening strategies – Program up to 256 parameters with as many as 20 steps
Jobs capability – 99
Real-time curve viewing. Curve storage – 20,000
Rundown storage – 1,000,000
Event log – 5,000
Backup & restore through USB
Weatherproof, rugged case protects from the toughest environments
Compact design weighs less than 20 lbs
Ground clamp is quick and easy to set up and eliminates additional parts that are substantially heavy
Optional tool fan kit helps prevents tool overheating
Capable of interface with the AcraDyne series DualLever tools that offer two-hand, no tie down functionality
110V — 220V compatible
Single Ethernet port increases speed of connectivity, signal stability, and signal consistency
Commands any tool in the AcraDyne line from 1 Nm to 17,000 Nm
-
AcraDyne’s software package is on-board every AcraDyne controller and is provided FREE of charge. This comprehensive, user-friendly program allows programming, analysis, and diagnostics.
The software is based on a standard web browser, allowing you to connect the AcraDyne controller with any computer, tablet, or smart device. Connect through Ethernet, USB, or wirelessly via a network connected to both devices.
Adding and editing Parameter Sets (256) and Jobs (99) Is easy and intuitive in the parameter set up function.
View curve results in real time or view stored results. As many as 20,000 curve results can be stored in memory.
Tool programming and diagnostics for repair, calibration and advanced troubleshooting.
Choose from several run screens that display easy to view, large screen indicators.
-
MANUALS:
Gen IV iEC4W Field Controller Manual
Gen IV Controller Quick Start Guide
Gen IV Controller Smart Arm Configuration ManualFIRMWARE:
Gen IV controller Firmware 1R25
Release Notes - SysRel 1R25CONTROLLER FIRMWARE MANAGEMENT:
Gen IV Controller Firmware Upgrade Instructions
Gen IV Controller Application Software & Firmware Guide -
COMMUNICATION PROTOCOLS AND SYSTEMS DOCUMENTS:
Gen IV Anybus Instructions
Gen IV Assignable IO Instructions
Gen IV Ethernet Instructions
Gen IV Ethernet IP Instructions
Gen IV FTP Instructions
Gen IV Modbus Instructions
Gen IV Open Protocol Instructions
Gen IV PFCS Instructions
Gen IV Serial Instructions
Gen IV Telnet Instructions
Gen IV ToolsNet Instructions
Gen IV XML Instructions
Gen IV Controller ProfiNet Instructions -
Gen IV Controller on PI Line Control Network
Configuring Mitsubishi PLC CC-Link IE Field Network
Configuring Rockwell PLC with Anybus DP-V1 Slave Module Instructions
Using Rockwell PLC with DeviceNet Instructions
Configuring Rockwell PLC with EtherNet IP Instructions
Configuring Rockwell PLC with Modbus TCP Instructions
Using Rockwell PLC with Modbus TCP Instructions
Using Rockwell PLC with Profibus Instructions -
product features
-
Capable of interface with the AcraDyne series Dual-Lever tools that offer two-hand, no tie down functionality
-
Single Ethernet port increases speed of connectivity, signal stability, and signal consistency - backup & restore through USB port
-
Durable, lightweight case for quick and easy setup - rugged exterior is weatherproof for tough environments
