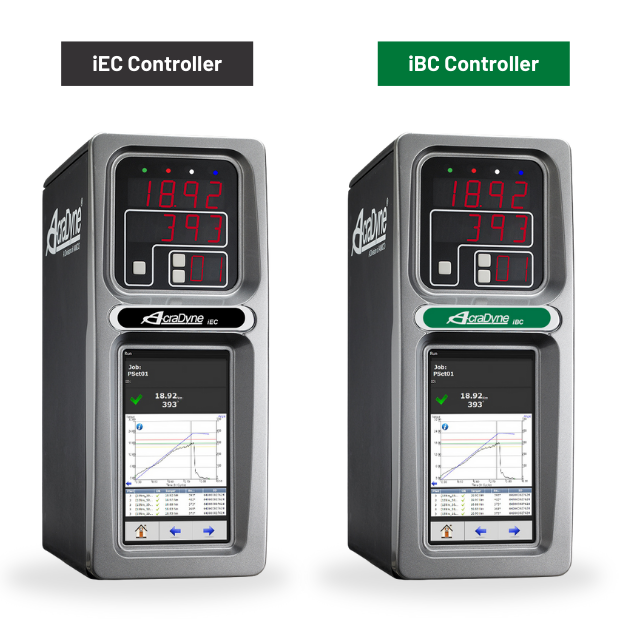

Gen IV iEC Controller

• Web browser based programing. Receive data on your computer, tablet, smartphone, or any other web-capable device. You can use more than one device at a time: Be in program mode on one device while reviewing real-time curves on another, while watching tool diagnostics on a third.

• Multiple fastening strategies – Program up to 256 parameters with as many as 20 steps

• Jobs capability – 99. Event log – 5,000

• Backup and restore through USB or Ethernet

• Assignable I/O (8 X 8)

• Rundown storage – 1,000,000

• Real-time curve viewing. Curve storage – 20,000

• One controller will command any Gen III or Gen IV tool in the AcraDyne line from 1 Nm - 17,000 Nm

• Ethernet Protocols supported: Open Protocol, ToolsNet, Ethernet/IP, Modbus TCP, PFCS, XML, FTP Client

• Anybus Field Bus connectivity: Profibus, Profinet, DeviceNet, CC-Link, CC-Link IE Field

• Data collection

• Serial protocols and string output

• Bar code scanning and printing

• Multi-spindle synchronization

Four Digit LED Torque Display: Large numbers can be seen from a distance

• Secondary Display allows user to easily set and toggle through information:

  • Angle

  • Engineering Units

  • Bolt Count

  • Job / Job Sequence

• 7” Touch-Screen Display:

  • Runs the same software on PC for ease of use

  • Real-Time Graphing

  • Selectable Run Screens

• Parameter Set Display: Displays current parameter set and enables user to quickly change by scrolling up or downs here

• AcraDyne’s software package is on-board every AcraDyne controller and is provided FREE of charge. This comprehensive, user-friendly program allows programming, analysis, and diagnostics.

• The software is based on a standard web browser, allowing you to connect the AcraDyne controller with any computer, tablet, or smart device. Connect through Ethernet, USB, or wirelessly via a network connected to both devices.

• Adding and editing Parameter Sets (256) and Jobs (99) Is easy and intuitive in the parameter set up function.

• View curve results in real time or view stored results. As many as 20,000 curve results can be stored in memory.

• Tool programming and diagnostics for repair, calibration and advanced troubleshooting.

• Choose from several run screens that display easy to view, large screen indicators.

MANUALS:
Gen IV iEC Controller Manual
Gen IV Controller Quick Start Guide
Gen IV Controller Smart Arm Configuration Manual

FIRMWARE:
Gen IV Controller Firmware 1R25
Release Notes - SysRel 1R25

CONTROLLER FIRMWARE MANAGEMENT:
Gen IV Controller Firmware Upgrade Instructions
Gen IV Controller Application Software and Firmware Guide

COMMUNICATION PROTOCOLS AND SYSTEMS DOCUMENTS:
Gen IV Anybus Instructions
Gen IV Assignable IO Instructions
Gen IV Ethernet Instructions
Gen IV Ethernet IP Instructions
Gen IV FTP Instructions
Gen IV Modbus Instructions
Gen IV Open Protocol Instructions
Gen IV PFCS Instructions
Gen IV Serial Instructions
Gen IV Telnet Instructions
Gen IV ToolsNet Instructions
Gen IV XML Instructions
Gen IV Controller ProfiNet Instructions

Gen IV Controller on PI Line Control Network
Configuring Mitsubishi PLC CC-Link Network
Configuring Rockwell PLC with Anybus DP-V1 Slave Module Instructions
Using Rockwell PLC with DeviceNet Instructions
Configuring Rockwell PLC with EtherNet IP Instructions
Configuring Rockwell PLC with Modbus TCP Instructions
Using Rockwell PLC with Modbus TCP Instructions
Using Rockwell PLC with Profibus Instructions

System Port Connectivity Troubleshooting for PC’s
