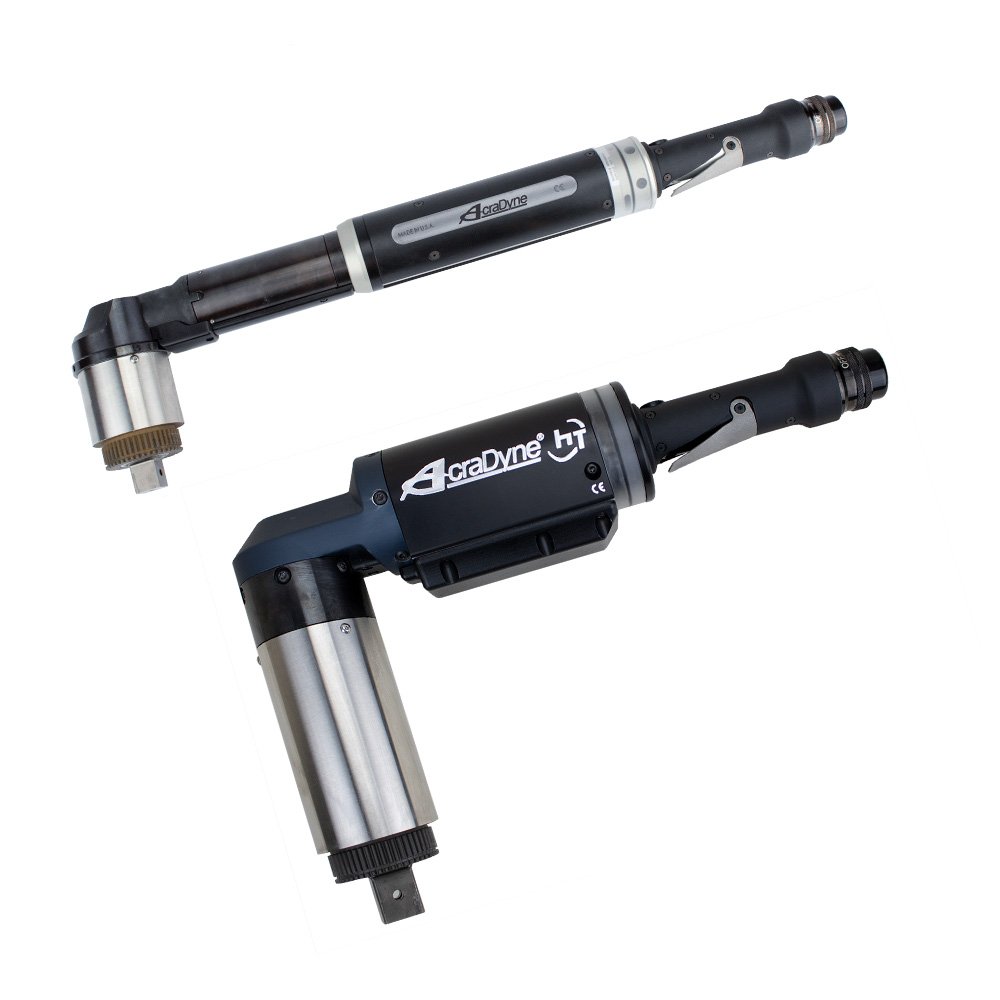

high torque right angle tool
AcraDyne’s high torque right angle tools represent industry leading technology and innovative tool design. These nutrunners enable tight tolerance bolting on fasteners that were very difficult to reach before. What began as a 3,000 Nm version for performing work on Wind Turbine Blade servicing jobs, has now evolved into a broad range of tools available in 5000, 6000, 7000, and now 8000 series models. Compact, durable head houses a precision right angle gearset that fits into the tightest spaces.
Torque Range: 50Nm - 5,000Nm
Made in the USA
-
AcraDyne HT DC Angle Tools provide the perfect solution for space-limited applications
Compact, durable head houses a precision right-angle gearset that fits into the tightest spaces
This unique tool configuration, built with all of the AcraDyne HT advantages, is made in a size that allows access to bolts that cannot be easily accessed by other continuous drive tools
Transducerized closed loop control at the output like all AcraDyne HT-Series tools
The torque reported is the torque delivered
One of the most accurate high-torque right-angle tools in the world
Same durable, high-cycle gearing as all HT-series tools
5000 series tools are fixed gearcase models
6000 series tools available in both fixed gearcase and 360° swivel gearcase models
7000 series tools are 360° swivel gearcase models
The 360° swivel gearcase allows for precise placement of the tool reaction bar against reactive surfaces for ease of use.
Dual-lever options available for 7000 series

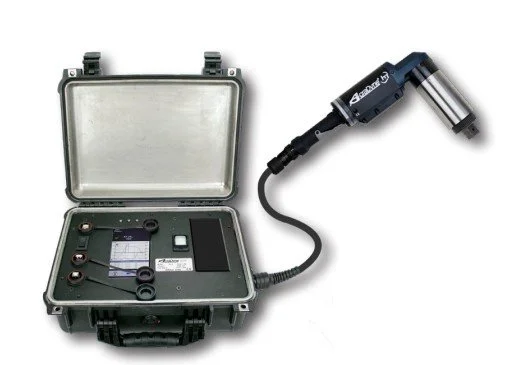

7000 Series available with an optional rugged, weather-resistant carrying case
-
product features
-
Our 5000 Series Right Angle Tool Model AEN3572600A
-
AcraDyne’s High Torque Right Angle Tool is THE tool for servicing blades on Wind Turbines
-
AcraDyne HT Series Tools feature the measurement sensor directly at the output of the tool, which means the torque reported is the torque delivered
